Shoe press

Shoe press is located in the PM press part. It belongs to the group of presses with an extended pressing zone. The load is controlled from 0 kN/m to the maximum load. The press roll has a bending compensation through a hydraulic system or a classic press roll with crowning.

Design

Shoe press is located in the PM press part. It belongs to the group of presses with an extended pressing zone. The load is controlled from 0 kN/m to the maximum load. The press roll has a bending compensation through a hydraulic system or a classic press roll with crowning. The shoe press is equipped with a stationary beam on which a set of hydraulic cylinders is attached. These cylinders press down the “shoe” to the rotating flexible blanket. The shoe profile is influenced by the shape of the upper loading roll. A rotating elastic blanket of the lower roll slides over a thin oil layer. Because of the hydraulic cylinders set and hydraulic unit design, it is possible to control the cross profile of the paper. It is used as a final press that is able to reach 35 - 40 % dryness when the dryness at the entrance is about 45 - 52 %.

Main parts

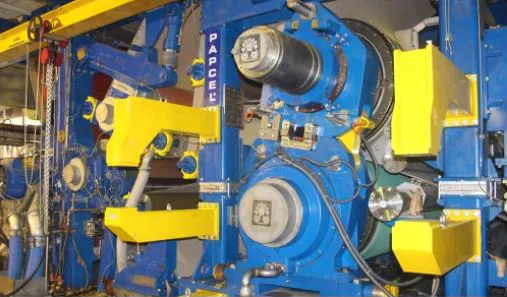

• bearing structure (1)

• press roll (2)

• shoe press roll (3)

• hydraulic system for the top press roll

• hydraulic system for the bottom press roll

• safety guards

Accessories

• drive

• control system and control panel

• assembly tools and tools for the regular exchange of the elastic blanket

• central lubrication and hydraulic aggregate

Advantages

• high dewatering efficiency

• saving of operating costs - energy saving in the drying part

• machine design and work safety are in compliance with EU standards
