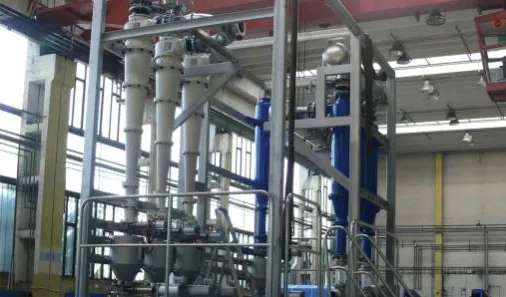

Combined cleaners

These cleaners differ from each other in design, size and throughput and they can be operated either independently or in a multistage stations. According to their output body, they have an open design (VO) - impurities are discharged continuously into collecting piping - or closed design (VU) - provided with a collecting box from which the reject is discharged manually (M) or (MK) or automatically (A).

These cleaners differ from each other in design, size and throughput and they can be operated either independently or in a multistage stations. According to their output body, they have an open design (VO) - impurities are discharged continuously into collecting piping - or closed design (VU) - provided with a collecting box from which the reject is discharged manually (M) or (MK) or automatically (A). The MK design enables the choice between a periodical and continuous reject. Moreover, cleaners modular system provides a simple conversion of particular types.

Opened cleaner MOVI SVO

• This cleaner is designed for a highly efficient fine separation of specifically coarse, light, sticky and conic impurities from thin stock. The separation of light impurities (polystyrene etc.) runs parallel with a stock desecration. Moreover, it reliably removes sand and other larger impurities. Cleaner provides a possibility to be operated up to 2 % density of the cleaned stock. The cleaners MOVI SVO usually run in multistage working stations arranged according to actual on-site operating conditions.

Closed cleaner MOVI SVU

• The closed cleaners are utilized namely as a final stage for a final cleaning of the reject. The open cleaners are joint in multistage stations. These ones are installed in waste paper processing lines, in approach flow system of paper machines, in ground-wood-making plants and everywhere, where it is needed to minimalize the reject quantity.

Main parts

• inlet body-head (1) and working body-cone (2)

• separating body with sight glass (3)

• collecting box with pneumatic gate valves (automatic control)

• collecting box (4) (mechanical control)

• steel supporting stand (5) (in case that the cleaner is delivered in station)

• separating pipeline of input (6), output (7), reject (8) provided with a flange on both ends (in case of station)

Material

• these cleaners are manufactured in several type sizes always based on a uniform design with a high unification of the parts

• materials used for VO, SVO, VU, SVU, MOVI SVO and MOVI SVU cleaners are based on a standard combination “stainless steel-plastics"

• the collecting box version M and MK is made of grey cast-iron, version A is made of stainless steel

Advantages

• low energy consumption

• low pressure loss

• simple operation

• long service life of all parts

• resistance against clogging

• high cleaning efficiency, operating flexibility and reliability

• unified unit-built design

• machine design and work safety are in compliance with EU standards
