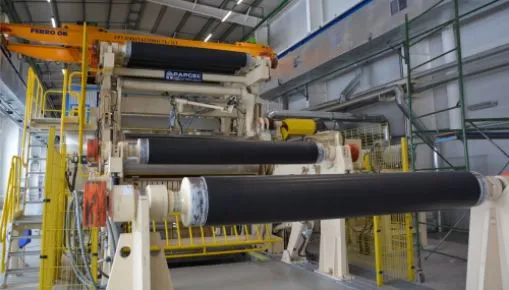

Hydraulic reel

Hydraulic reel

Hydraulic reels HN with a supporting drum, type POPE, are intended for paper web reeling. The paper web is reeled up at constant speed on a roll - the reel spool. The reel spool revolutions depend on down pressure induced by the carrying cylinder which is driven either by a geared electric motor or PM transmission.

Design

Hydraulic reels HN with a supporting drum, type POPE, are intended for paper web reeling. The paper web is reeled up at constant speed on a roll - the reel spool. The reel spool revolutions depend on down pressure induced by the carrying cylinder which is driven either by a geared electric motor or PM transmission. The supporting drum can be made of cast iron or completely welded of structural carbon or stainless steel. Between stands there is a doctor with electromechanical oscillation installed for surface cleaning. On the PM control side, there is a fixed or free rope pulley according to the paper threading system into the reel. The supporting drum is equipped with an internal cooling system used for the paper web cooling coming from the PM drying part. Tilting arms are operated hydraulically and they are mechanically coupled to keep their mutual positions and providing a uniform run. The loading levers are designed in the same way which as an addition can regulate the reel spool loading on the supporting drum for each lever separately. In the end position, the reel spool is stopped by hydraulic dampers and braked by disc brakes. A great emphasis is put on work safety during the reel operation. The reel is designed so that an access to dangerous spots and to squeezing points (between the reel spool and supporting drum) is prevented. Control of all reel functions can be done through the control board either in manual or fully automatic modes.

Main parts



  • bearing structure (1): two steel-welded boxes, two stands with beams and prismatic guides for reel spool rolling



  • supporting drum with rope pulley (2) (stationary or floating)



  • supporting drum bedding (3)



  • supporting drum cooling system (4)



  • tilting arms (5) for attachment of empty reel spools



  • loading levers (6) attached to basement rails of the reel



  • doctor with oscillation (7)



  • damper of wound paper reel with a brake (8)



  • reel spool starter (9)



  • reel spool magazine (10)



  • machine control



  • machine guards (11)



  • service bridges, hydrostatic drive, pneumatic circuit



Advantages



  • simple operation



  • possibility of fully automatic operation



  • adjustable hardness of paper web winding



  • machine design and work safety are in compliance with EU standards

Accessories



  • equipment for paper web threading



  • equipment for loading of reel spools into the tilting arms with a reel spools magazine



  • reel spools with rubber or polyurethane surface depending on customer's request



  • reel driving unit

Scope of delivery



  • complete machine according to the main parts description



  • accessories optionally
