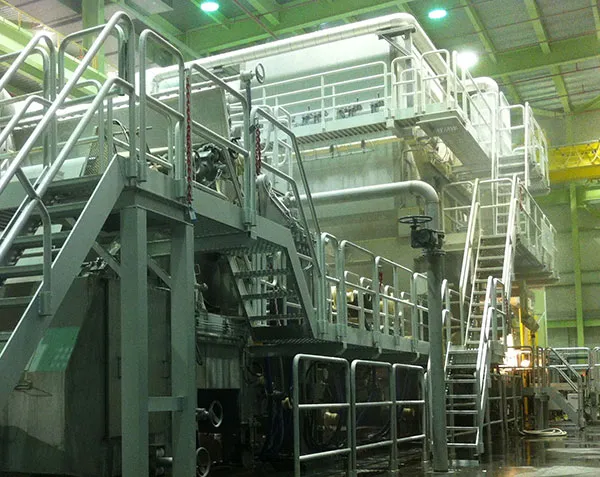

Tissue Paper Making Machines

OVERMADE  is universally acknowledged as a leader in the manufacture of tissue making machines on account of the outstanding quality, softness and properties of the paper produced on them. We have manufactured tissue machines since the early 60's, developing and mastering the whole technology of tissue making: from the early fourdrinier to the suction breast roll, from twin wire to crescent former.

To cover every  production target, OVERMADE  delivers a wide range of tissue machines, starting from the simple and low-investment model designed for productions  between 40 and 60 t/day, up to the most advanced model for 250 t/day - 5650 mm trim width.

Overmade Tissue Machines Features:


  • Flexible and Efficient
  • Energy Saving
  • Simple to operate
  • Low Maintenance Required
  • Easy Production Changes
  • Saleable Jumbo Rolls from the very start up


OverMade Tissue Machines Reel Sheet Width Design Speed Production Capacity
OVER CR B11 2750 - 2850 mm 1100 mpm 40 tpd
OVER CR B13 2750 - 2850 mm 1300 mpm 50 tpd
OVER CR B15 2750 – 2850 mm 1500 mpm 60 – 70 tpd
OVER CR C18 2750 – 2850 mm 1800 mpm 80 – 90 tpd
OVER CR C20 2750 – 2850 mm 2000 mpm 90 – 105 tpd
OVER CR C22 2750 – 2850 mm 2200 mpm 105 – 120 tpd
OVER CR C18L 3450 – 3600 mm 1800 mpm 110 – 120 tpd
OVER CR C22L 3450 – 3600 mm 2200 mpm 130 – 140 tpd
OVER CR D22 5600 mm 2200 mpm 210 tpd
OVER CR D22XL 5600 mm 2200 mpm 250 tpd
OVER TAD22 2650 – 2750 mm 1800 mpm 80 – 120 tpd
OVER TAD22XL 5600 mm 2000 mpm 160 - 240 tpd
