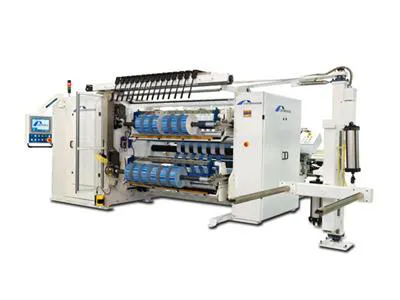

Model 902 Duplex Slitter with Log Winding

Model 902 Duplex Slitter with Log Winding

The dual-function Model 902 center winder provides all the capabilities of a standard cantilevered duplex slitter as well as the ability to log wind large diameter rolls. Log rolls are wound on the bottom shaft operated in a lift-out mode. This machine features advanced technologies such as auto core placement, auto knife positioning, and customized roll loading and unloading systems. Applications for this versatile winder include flexible packaging, film laminations, foams, pressure sensitive label stock, industrial films, and paper.

Standard Features

• Duplex rewind diameter to 31.5" (800 mm), log winding diameter to 48" (1219 mm)

• Web widths to 84" (2140 mm)

• Speeds to 1800 fpm (549 m/min)

• Center rewinding with touch rolls or minimum gap mode

• Linear tracking lay-on rolls

• 2-, 3-, or 4-motor drive

• Automatic taper tension control

• Advanced CBM1 control system with user-friendly interface, recipe control, programmable tension and density, data logging and remote support

• Shear, score or razor slitting

Optional Features

• Overhead web path

• Varous unloading options

• Automatic knife positioning

• Automatic core positioning

• Trim winders

• Splice tables

• Pin or cross-web perforation

• Roll pushers
