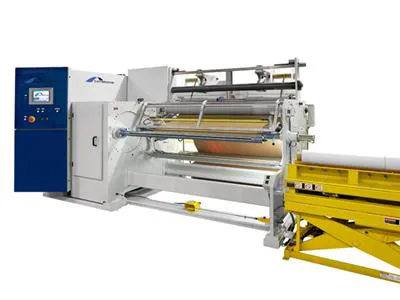

Model 324 Cantilevered Turret Slitter Rewinder

Model 324 Cantilevered Turret Slitter Rewinder

The slitter rewinder that is revolutionizing small to medium roll rewinding. This center winder has a simple-to-operate cantilever design with a single-head turret. Suitable for almost all substrates, this model offers numerous time saving features to enhance productivity on both short and long run jobs.

Standard Features

• 18" or 24" (450 and 600 mm) rewind diameter

• Web widths up to 110" (2800 mm)

• Speeds up to 2000 fpm (610m/min)

• Shear, score or razor slitting

• Differential or lock core winding

• Linear tracking layon rolls

• Automatic cut off and transfer

• Advanced CBM1 control system with user-friendly interface, recipe control, programmable tension and density, data logging and remote support

Optional Features

• Automatic knife placement

• Driven and carbon-fiber roll options

• Up to 42" (1070 mm) roll diameter

• Automatic tabber to apply tape for core attachment and tail tie

• Roll enveloper for tapeless, glueless, no foldover starts

• Traversing trim winders and trim removal systems

• Single or dual bowed rolls for slit separation

• Finished roll discharge pusher

• Various roll unloading options

• 324-MC configuration for demanding applications
