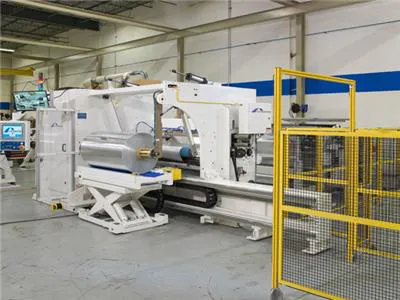

Model 900-S Single-Shaft Slitter Rewinder

Model 900-S Single-Shaft Slitter Rewinder

The Model 900-S, an innovative simplex center winder for 40” rewind diameters, handles materials including films and film laminations, paper laminations, and nonwovens. The 900-S has a cantilevered design and can be configured for locked-core and differential winding. Single-shaft winding offers cycle time and ergonomic advantages. With one shaft at an operator-friendly belt height, operators don’t need to bend and reach, and common tasks ranging from core loading to finished roll unloading become easier and faster.

Standard Features

• Speeds up to 2500 fpm (763 m/min)

• Web widths up to 84" (2134 mm)

• 40" rewind diameters (1016 mm)

• Overhead web path

• Shear and/or razor slitting

• Center rewind with touch roll

• Cantilevered rewind shaft

• Differential or locked-core winding

• Closed or open loop tension

• Automatic taper tension control

• Bowed roll

• Cart discharge

• Safety PLC, guards, and sensors

• Advanced CBM1 control system with user-friendly interface, recipe control, programmable tension and remote support

Optional Features

• Walkover web path

• Splice table

• Inspection lights

• Camera system

• Score slitting

• Automatic knife positioning

• Laser pointers for core and/or knife placement

• Trim winders or vacuum system

• S-wrap nip

• Additional bowed roll

• Slit web clamps

• Pin or cross web perforating

• Alternate roll discharge options
