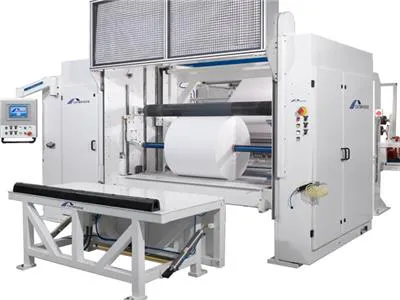

Model 205 Two-Drum Surface Winder

Model 205 Two-Drum Surface Winder

Model 205 Two-Drum Surface Winder

The versatile Model 205 expands the capabilities of two-drum surface winders. The 205 offers fast, efficient converting for standard work and also supports more challenging slitting work. Specifically, this surface winder offers multiple slitting methods along with roll separation for slitting work as narrow as 1 inch. The 205 two-drum surface winder rewinds to diameters of 50 inches and handles a variety of applications including papers, light board, tissue and toweling, nonwovens, and some film materials.

Standard Features

  • Speeds up to 2500 fpm (763 m/min)

  • 50" (1270 mm) rewind diameters

  • Web widths to 72" (1829 mm)

  • Programmable profile drum torque

  • Overhead web path

  • Shear, score or razor slitting (or combinations of all three)

  • Roll ejector

  • Advanced CBM1 control system with user-friendly interface, recipe control, programmable tension and density, data logging and remote support

Optional Features

  • Splice tables

  • Single or dual-bowed rolls

  • Automatic knife positioning

  • Driven and/or micro-grooved roll options

  • Shaftless rewind

  • Lift-out bridge table or J-table
