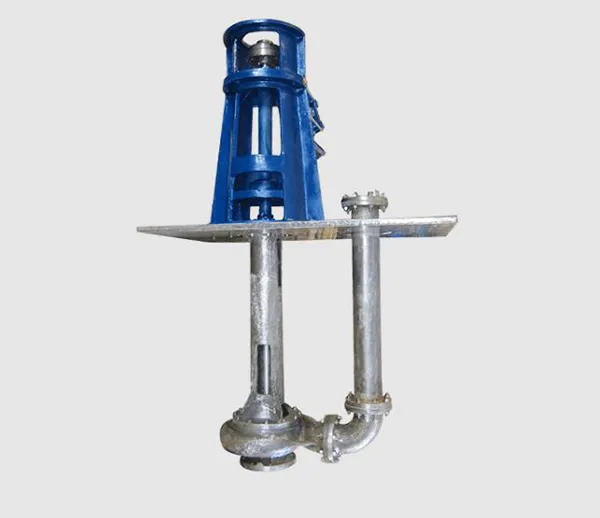

VERTICAL CANTI LEVER PUMP (VG)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

Description

The cantilever design of the vertical pumps makes it suitable for corrosive applications as intermediate bush bearings are avoided. It is recommended where space economy matters. It is highly efficient, reliable and reduces operating costs.

Operating Range

1. Delivery Size: DN 25 to 300 mm
2. Capacity: Up to 500m³ /hr
3. Head: Up to 75 m
4. Temperature: Up to 120° C

Design Features

1. Vertical suspended with open / closed impellers
2. Cantilever design
3. Simple mounting & self-priming
4. Up to 3 metres submersion depth
5. Simple, fast external impeller adjustment

Applications

1. Suitable where space economy matters
2. Suitable for Acids, Alkalies & Slurries in basic metal industries
3.  Waste water, sludge handling in pulp & paper industries
