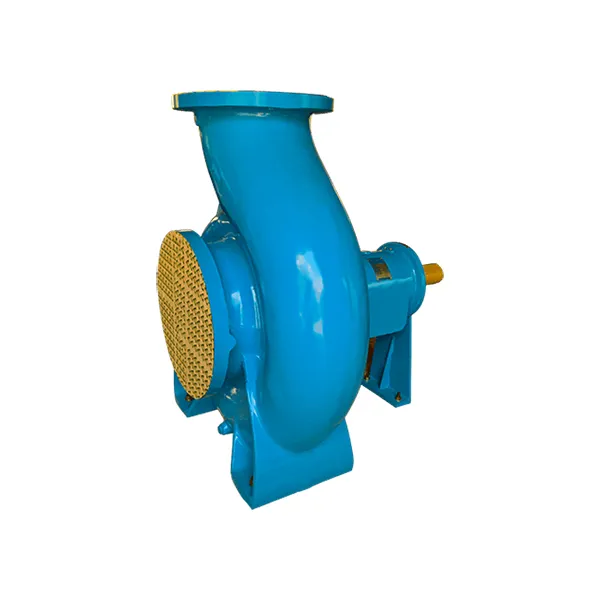

PULP & PAPER STOCK PUMPS (TPS)

Paper stock pumps are known for their heavy duty, centrifugal design. It is designed for handling paper stocks and pulp up to 7% consistency. It is also suitable for heavily contaminated liquids.

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month.

Operating Range

• Delivery Size: DN 32 to 350 mm
• Capacity : Up to 2250m³/hr
• Head: Up to 80 m
• Temperature: Up to 140° C
• Pressure: Up to 22 bar

Design Features

• Heavy Duty Centrifugal Design
• Conforming to DIN 24256
• Open impellers with renewable front wear plate and closed impeller with wear - ring
• Simple external adjustment for impeller wear
• Gland packed / mechanical seal

Applications

• Handling pulp & paper stocks up to 7% consistency
• All liquor applications in pulp & paper industries
• Suitable for high capacity requirement of acids, alkaline, corrosive slurries etc.,
• Suitable for heavily contaminated liquids, raw sewage, sludge
