Sam Turbo Industry Private Limited

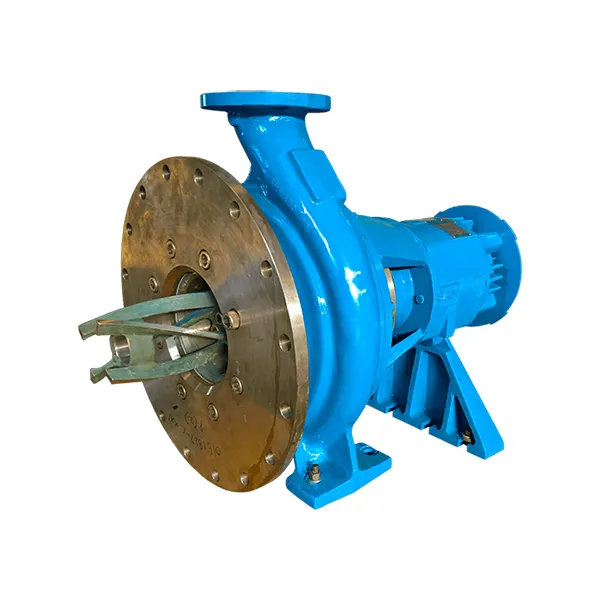

MEDIUM CONSISTENCY PUMPS (TPS+H)

The medium consistency pumps are designed for reliable pumping of stock from 8% to 18% consistency. It is recognized for its reliable direct drive and easy maintenance. It is suitable for turbid and slightly contaminated liquids.

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month.

Operating Range

• Delivery Size : DN 80 to 200 mm
• Capacity : Up to 500m³/hr
• Head: Up to 140 m
• Temperature: Up to 150° C
• Pressure: Up to 22 bar

Design Features

• Centrifugal & Single stage
• Open impeller with fluidizer
• End suction & Top discharge
• Sturdy & vibration free casing mounting to the base

Applications

• Reliable pumping of pulp stock from 8% to 12% consistency
• Supplied along with vacuum pump - in-built / external mounted
