Sam Turbo Industry Private Limited

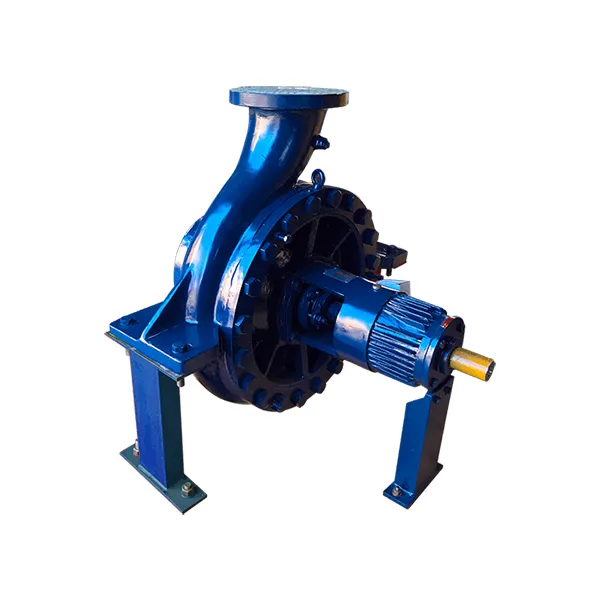

API PROCESS PUMPS 7TH EDITION (SVN)

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month

Description

High temperature and pressure process pumps are aptly designed for applications in the process industry and transfer systems. It is suitable for refineries and oil and gas fields. It is also used in the chemical and petrochemical industry.

Operating Range

• Delivery Size: DN 25 to 250 mm
• Capacity: Up to 1000m³/hr
• Head: Up to 300 m
• Temperature: Up to 450° C
• Pressure: Up to 60 bar

Design Features

• Conforming to API 610 7th edition
• Centre-line mounting
• Heavy duty shaft & bearings
• Double volute to minimize radial thrust (above 3inch discharge)
• Renewable impeller and casing wear-rings

Applications

• Process industries & transfer systems
• Refineries, Oil & Gas fields, on/off-shore
• Petro chemicals
• Heat carrier system
• Boiler cleaning
