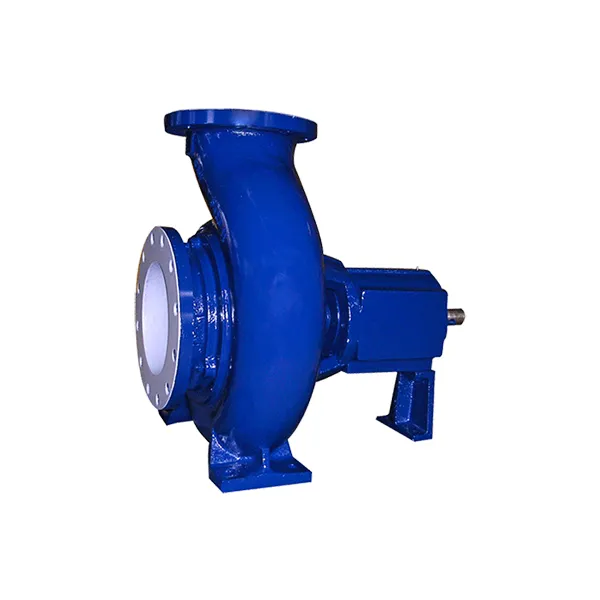

PULP & PAPER STOCK PUMPS (SPS+T)

The paper stock pumps are used for continuous operation in the process industries for the pumping of clean, abrasive/corrosive liquids, and various stocks up to 8% consistency. It is suitable for all liquor applications in the paper and pulp industry.

Equipped with a Captive Steel Foundry With a Capacity of 450 MT/month.

Operating Range

• Delivery Size: DN 32 to 300 mm
• Capacity: Up to 1800m /hr
• Head: Up to 150 m
• Temperatures: Up to 140 C
• Pressure: Up to 22 bar

Design Features

• DIN 24256 Std
• Open impellers with renewable front wear plate and closed impeller with wear - ring
• Simple external adjustment for impeller wear from suction side
• Gland packed / mechanical seal / dynamic Seal

Applications

• Handling pulp & paper stocks up to 8% consistency
• All liquor applications in pulp & paper industries
• Suitable for high capacity requirement of acids & alkalies, corrosive slurries etc.,
• Suitable for heavily contaminated liquids, raw sewage & sludge
