HOMA pump factory GmbH

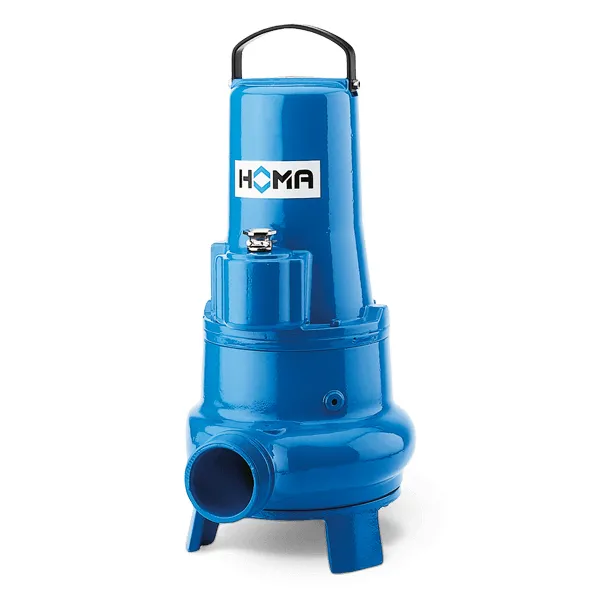

SUBMERSIBLE PUMPS FOR DRAINAGE AND SEWAGE - TP50

AREAS OF APPLICATION

Submersible pumps of the TP50 series are used for pumping waste water, waste water and sludge. Due to the large free passage of 50 to 65 mm, they are particularly suitable for use in media with coarse solids and fibers. Ideal for economical disposal in municipal and private areas, in trade and industry.

LINEUP

Stationary or transportable. Version with float switch as an automatic sewage pump with water level-dependent operating control.

MATERIALS

Pump housing, impeller & motor housing (cast iron EN-GJL-250), motor shaft & screws (stainless steel), mechanical seals (silicon carbide), wear ring (bronze), elastomers (NBR).

CONVEYING MEDIUM

Clear and dirty water, waste water contaminated with solid and fibrous matter. Max. temperature of the pumped medium: 40˚C, briefly up to 60˚C.

ENGINE

Fully submersible, water pressure tight motor. Insulation class H. Degree of protection IP 68. Equipped with a thermal sensor in the winding as standard. triangle start
