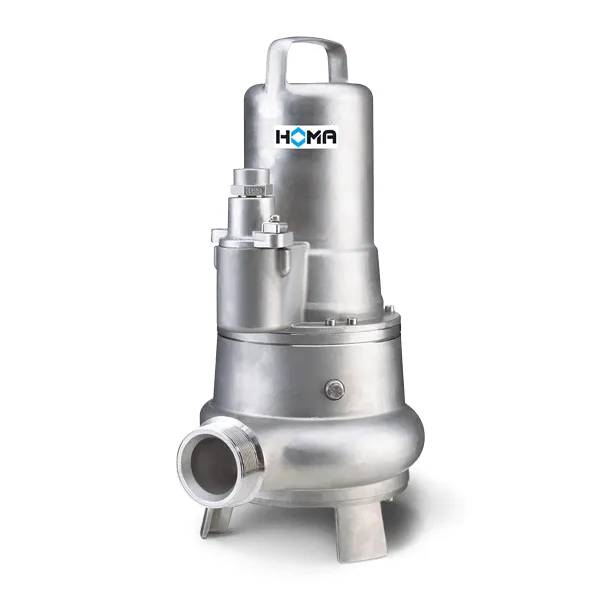

SUBMERSIBLE PUMPS FOR CHEMICALLY AGGRESSIVE SEWAGE AND SEWAGE - CTP50
AREAS OF APPLICATION
Submersible motor pumps of the CTP50 and CTP70 series are used to pump corrosive and abrasive media, chemically aggressive waste water and waste water as well as liquid chemicals.
LINEUP
Stationary or transportable.
MATERIALS
Pump housing, motor housing (stainless steel 1.4436), impeller (stainless steel 1.4436), wear ring, motor shaft, mechan. Connecting parts (stainless steel 1.4571), O-rings FPM (Viton), mechanical seal SiC / SiC, FPM (Viton), polyolefin cable protection hose.
CONVEYING MEDIUM
Sewage and waste water with solid and fiber parts as well as chemically aggressive parts. Max. temperature of the pumped medium: 40° C, briefly up to 60° C.
ENGINE
Fully submersible, water pressure tight motor. Insulation class H. Degree of protection IP 68. Thermal sensor for temperature monitoring in the winding. With cable protection tube and longitudinally watertight cast cable entry.
PARTICULARITIES
Due to the large free passage of 50 mm, they are particularly suitable for use in media with coarse solids and fiber content, for waste water disposal in industry and commerce and for pumping liquid chemicals in industrial processes.
