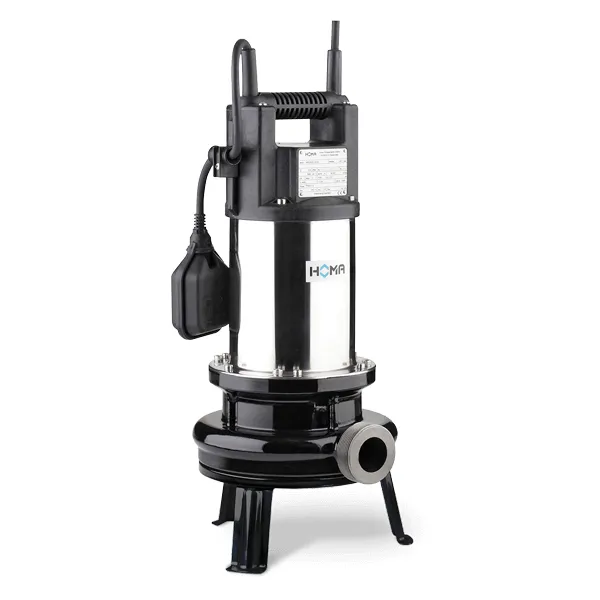

HEADER SEWAGE PUMPS - TGR15

AREAS OF APPLICATION

Use Sewage disposal with small pipe cross-sections, high delivery heights with relatively low flow rates, pressure drainage systems in topographically difficult areas. The TGRs shred solids that are carried along in fractions of a second, so that plastic pipes with cross-sections from 1 ½" are sufficient for the pipelines. In this way, the costs for the use of materials and the laying of waste water systems can be significantly reduced.

LINEUP

Stationary or transportable. Version with float switch as an automatic dirty water pump with water level-dependent operating control.

MATERIALS

Pump housing (cast iron EN-GJL-250), cutting device (hardened stainless steel), impeller (stainless steel 1.4308), motor housing (stainless steel 1.4301), motor shaft (stainless steel 1.4104), motor housing cover (plastic GFK30), mechanical seal (silicon carbide), mechanical connecting parts (stainless steel) , Elastomers (NBR).

CONVEYING MEDIUM

Clear and dirty water, waste water contaminated with solid and fibrous matter. Max. liquid temperature: 40˚C.

ENGINE

Fully submersible, water pressure-tight electric motor, single-phase or three-phase design. Thermal sensor for temperature monitoring in the winding. Insulation class F, protection class IP 68.
