Durrer Spezialmaschinen AG

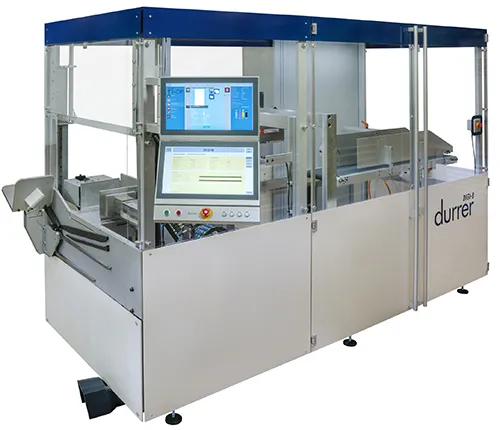

DIGI-B Digital edge-colouring

DIGI-B

Digital edge-colouring

The DIGI-B is a digital colour cutting machine for industrial production. The printing of 4 sides is possible in a fully automatic process. The pre-stacking of the products takes place during the printing process on a separate device. The complete stack is loaded in insert/delivery station in the clamping device.

The basic machine can handle formats from 50 x 50 mm to 360 x 360 mm. Optional possible up to maximum 720 x 720 mm.

The printing process takes place in a single-pass process and enables high performances. By format-specific clamping plates fast format changes are possible. The low unit costs are a result of an optimal use of the printhead width, low portion of costs by consumables as well as low maintenance costs and efficient pro- duction.

• Digital printing process

• High productivity

• Very low maintenance requirement

• Print unit with automatic cleaning station

• loose sheets with 4-sides printing (e.g. note cube)

• Short setup and change over time

• Very large format range

• Station with pre-stack assembling by insert station

• Processing of product stacks from pile to pile

• Optional automatic delivery unit

• Processing of book blocks and brochures

• Distance– and/or power controlled clamping

• Large program memory capacity

• Interface to pre-press and superior guide-systems

• (Industry 4.0)
