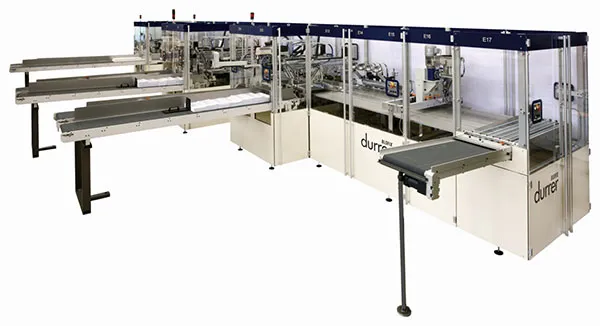

BLOFIX Machine
BLOFIX Machine for glueing calendar blocks onto the back of the carton and for attaching head flaps. Punching, creasing, straightening, glueing, stapling, labelling, and delivering are all fully automatic, in high quality and for various formats. Ideal for single-block and multi-block calendars.
Products - Single block calendar, multi-block calendar (multi-month, picture, etc.)
Back cover formats - length 240 - 1050 mm, width 160 - 420 mm
Calendar block formats - length 120 - 500 mm, width 160 - 420 mm
Formats single block calendar - length 240 - 1050 mm, width 160 - 420 mm
Formats Header - Length 120 - 500 mm, Width 160 - 420 mm
Adhesive - Hot glue for fixing the calendar block, cold glue additionally for improved long-term fixing
Punching - for hanging up the calendar
Creasing - for folding the calendar
Eyelet - to reinforce the hanging hole
Labelling - to reinforce the hanging hole, to cover the eyelet as a label at any position
Head flap - Stapling device for fastening the head flap Device for gluing, folding over and pressing on the head flap
Operating modes - A: Stand-alone with automatic infeed and delivery from stack to stack, B: In-line with machine MONA with automatic infeed from stack and transfer module to MONA
Manpower - 100 - 300 % manpower (depending on operating mode and system limits)
Output - Cycle speed 2'300 units/hour
Changeover time - 5 - 45 minutes
