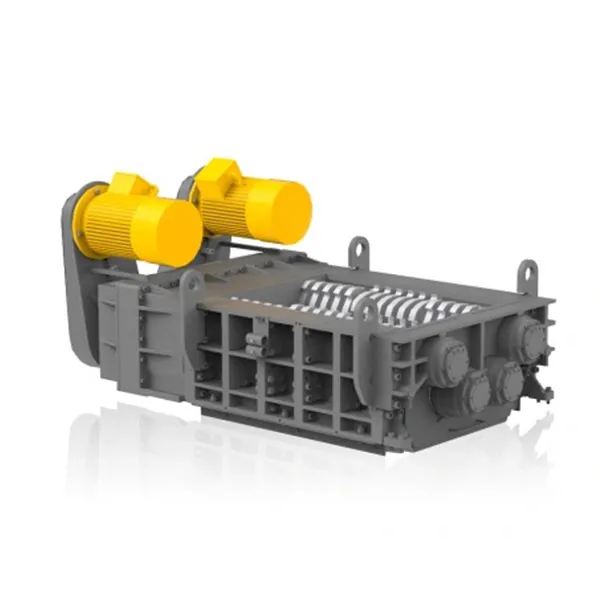

Four shaft shredder RS50 or 60 or 100
Four shaft shredder RS50 or 60 or 100 for industrial recycling applications
-
For particularly difficult applications
-
Very compact and rugged design
-
High availability and process stability
-
Low noise and dust emissions
What distinguishes the RS50, RS60 and RS100 shredder
RS50
-
Rated capacity: 44 / 50 / 60 kW
-
Feed opening: 750 / 960 / 1.230 x 700 mm
-
Fraction sizes (based on the screen): 15 - 40 mm
RS60
-
Rated capacity: 60 / 74 kW
-
Feed opening: 960 / 1.200 / 1.440 x 860 mm
-
Fraction sizes (based on the screen): 20 -100 mm
RS100
-
Rated capacity: 110 / 150 kW
-
Feed opening: 1.200 / 1.500 x 1.020 mm
-
Fraction sizes (based on the screen): 20 - 100 mm
Shredding solution for tough applications
Top-quality recycling for even the most extreme applications and materials from a premium manufacturer: The mature RS50, RS60 and RS100 shredders, which have been tried and tested under difficult conditions, are characterised by their outstanding reliability, their ability to handle unshreddables and a particularly wide application range - from recycling via plastic utilisation, right up to file and data destruction. Further features are their highly compact and rugged design, high availability and process stability as well as low noise and dust emissions.
Advantages of the Four shaft shredder RS50 or 60 or 100
As these machines are modular in concept, the speeds, torques, cutting unit apertures, cutters, perforated screens and sealing variants can be individually assembled for each shredder depending on customer requirements. The rugged construction and the robust cutters make this high throughput shredder particularly attractive for multi-shift continuous operation and integration into existing plants. The middle-range RS class series is particularly effective in difficult recycling applications and in pre-shredding.
In contrast to fast-running systems, four shaft shredders are especially resistant to foreign objects, meaning that if a cutting disc hits a foreign object, then the machine stops immediately. On the one hand, this prevents damage resulting to the shredder cutters. On the other, the reliable drive permits frequent reversing, which is particularly beneficial when shredding problematic materials. In addition, the manufacturer has integrated a perforated screen quick-change system as standard, which permits rapid and efficient changing of the screen and guarantees easy operation.
For multi-shift, continuous operation
Wide range of materials: RS50, RS60 and RS100 shredders are able to shred everything from files and data, dashboards, automotive interior panels, batteries, tin cans, electronic scrap, electric ovens right up to Eternit panels, sprung mattresses, films, dishwashers, commercial waste, rubber waste, cardboard, plastics, refrigerators, metals, medical waste, paper, paper rejects, PET bottles, production waste, Tetra Pak, textiles, packaging materials, workshop waste and much more.
For integration into existing plants, the recycling machines can also be equipped with separator and conveyor technology such as discharge screws, customised hoppers and substructures and control expansions. Our specialists are happy to tailor a configuration for your plant. Your advantage: We offer comprehensive, single-source solutions direct from the manufacturer!
Which materials can be shredded?
-
Product Destruction
-
Files & Data
-
Plastics
-
Problematic Materials
-
Electronic Waste (WEEE)
-
Metal
-
Paper & Cardboard
