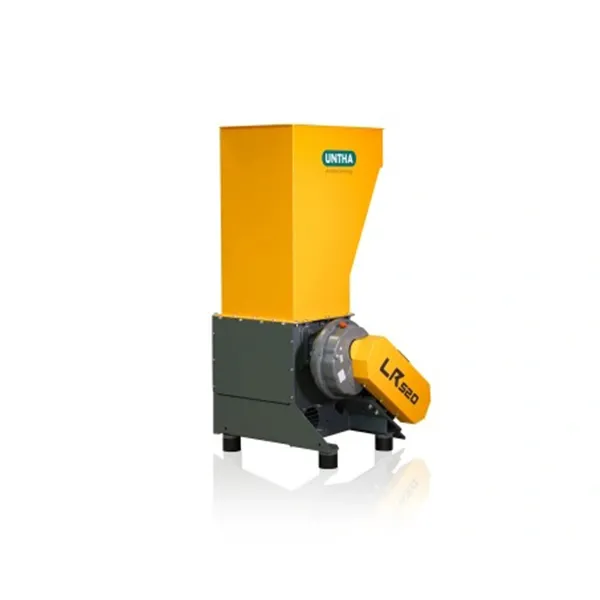

Compact wood shredder LR520
The small, compact wood shredder LR520 for joiners and carpenters.
-
Small footprint
-
Tried and tested technology
-
Energy-efficient drive concept
-
Homogeneous wood chip quality
-
Customised system solutions
-
3-Year Worry-Free Guarantee
What distinguishes the LR520 wood shredder
-
11kW rated capacity of the rotor
-
516 x 830mm feed opening
-
12-30mm Fraction sizes (based on the screen)
-
1 srm/h maximum throughput capacity
Your compact and reliable 1-shaft shredding system
The LR520 is the most compact wood shredder in the LR class range. Its modest footprint is less than 1m², meaning that it can even be easily integrated into the smallest of carpenter’s workshops. We have developed the single shaft shredder for wood especially for these small wood working plants. Due to its unique, pusher-free design, the shredder is not only compact in size, but also particularly low maintenance. The ideal machine for wood working plants which produce low waste wood quantities.
Advantages of the compact wood shredder LR520
The pusher-free design of the wood shredder features a pull-in mechanism and therefore very few moving parts. This reduces machine maintenance costs to a minimum. The gear damper cushions strong blows during the shredding process and ensures quiet machine operation. In addition, the wood shredder is equipped with a foreign object detection system and an automatic shut-down function to prevent damage to the shredder cutters. The LR520 is easily able to shred any type of wood, such as waste wood, chipboard and long splinter wood. The homogeneous wood chip quality produced by the shredder is ideal for thermal utilisation or incineration in a wood chip heating system, or for the manufacture of wood briquettes.
A major advantage of the LR520 wood shredder is its energy efficiency. The proven cutting system in the shredder can easily shred residual timber and only requires a drive capacity of 11 kW. If the machine stands idle for more than 3 minutes, it will shut down automatically. This saves energy whilst simultaneously reducing the operating costs of your wood working plant.
According to your needs
The compact wood shredder LR520 can be used to shred hardwood and softwood, OSB board, chipboard, MDF sheets, veneers and other materials produced during timber processing, from which it produces high-quality wood chips.
Each of our wood shredders is customised to the requirements of your wood working plant. The machines can also be equipped with a metal separator, a conveyor system or a customised hopper. We offer comprehensive, single-source solutions direct from the manufacturer!
