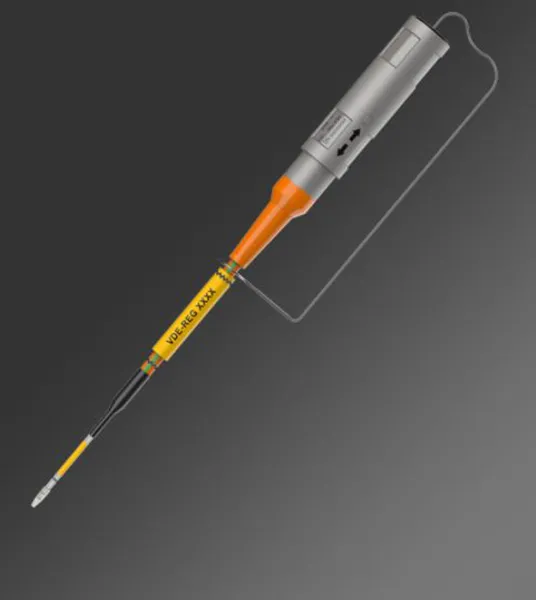

Thermocouple 1 x type K Ø 3,6

VDE approved HV temperature sensor for the development of future drive components in the automotive industry.

Sensor with 1 thermocouple type K, class 1 according to IEC / EN 60584-1

PUR insulated thermocouple cable according to IEC / EN 60584-3 in Ø 3,6 mm with wear detection

process temperature -50 °C to +180 °C

Transient overvoltage up to max. 2.5 kV

Tested electric strength 3.6 kV AC

Nominal lengths customised from 1m to max. 15 mOptional:

with Dakks calibration according to DIN EN 17025

Testing and repair of sensors already in use
