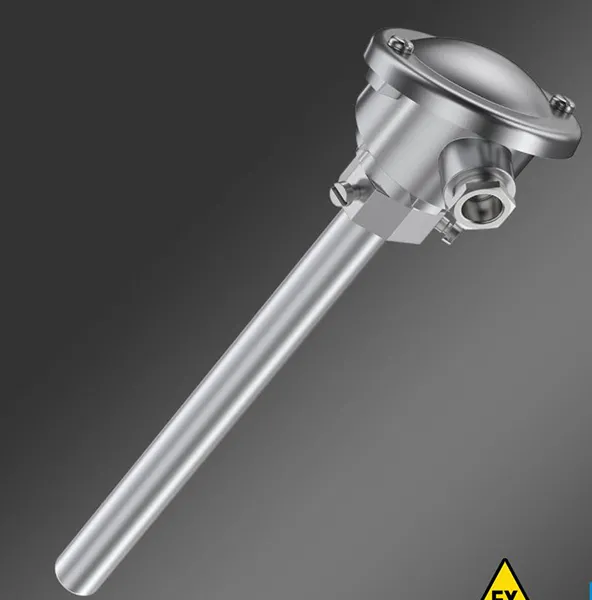

Large TC model AMK
Large thermocouple model AMK according to DIN EN 50446straight thermocouple with metal protection tube, connection head in model A and TC wire
Under certain conditions, use in hazardous areas is possible on request.
Process connection with separate stop flange, gas-tight threaded socket or welded-on flange: Area of application: Glass industry, steel/iron, aluminium/non-ferrous metal industry, industrial furnace construction, automotive industry, heat treatment, plant/mechanical engineering, energy, waste incineration/recycling, cement/building materials.
Measuring range up to 1200°C depending on protection tube material and thermocouple.
Preferred protection tube material 1.4841, preferred diameter 22 or 26 mm.
1 or 2 thermocouples acc. to DIN EN 60584-1, ceramic insulated, 2. Sensor e.g. for temperature recording or overtemperature monitoring.
For comparison measurements, also with optional test hole.
On request with calibration (also according to AMS 2750 or CQI 9) in our accredited laboratory according to DIN EN 17025 (measured variable temperature)
