Reckmann GmbH

RTD model D

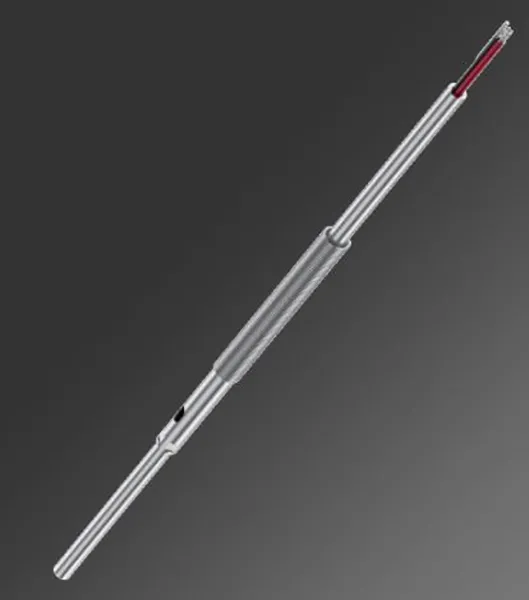

Resistance temperature detector model DBendable RTD with cable and free ends

Note: also available as type-tested Ex i version according to ATEX and IECEx for measuring in zone 0,Type in Ex operating instructions WR14-O, type of protection Ex ia IIC T1...T6 Ga or Ex ia IIIC T135 °C Da.

Area of application: this sensor enables temperature measurement in hard-to-reach places, e.g. in plant and pipeline construction for industry and development.

Preferred sheath diameter 1.5; 2; 3; 6 mm.

Sheathed cable according to IEC / EN 61515.

Measuring range depending on sensor type -196 to 600°C, sensor according to DIN EN 60751.

Connection cable PVC, silicone, PTFE, FEP or glass fibre insulated.
