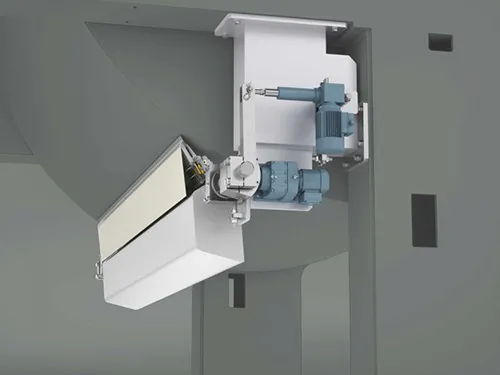

OraSet System

OraSet™ System is the evolution of the OraCrepe™ creping doctor that allows changing the creping angle with continuity while the machine is running. Independent motors controlled by absolute encoders drive the unit and they allow changing the blade with continuity, within a range of ±5° around the center value. The OraSet™ System can be supplied with OraTec™ for the detection of chatter marks and vibration analysis.

Technical characteristics

• Continuous creping angle adjustment with machine running

• Variation of the creping angle by ±5° compared to the center value

• Angle variation obtained by actuators controlled by absolute encoders

• Standard working load: 200-350 daN/m

• Carico di lavoro massimo: 600 daN/m

• Adjustable blade stick-out: from 12 to 45 mm

• Employs blades of different height

• Edge tube depressors: mechanical, adjustable while the machine is running

• Accepted blades: steel, with or without ceramic tip
