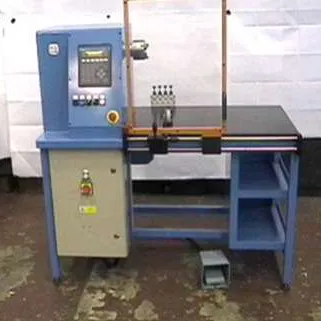

Single spindle winder NS-04

It is intended for use in repairs or small-scale production. Spindle drive with asynchronous electric motor with speed control via frequency converter. The winding is triggered by the foot switch, the speed is controlled by the depth of the foot switch. When the individual coil is completed, the winding automatically stops. The wires pass through the hand pulley. The number of threads per coil (up to 12 coils) is entered on the operator panel. Diagnostics of machine operation on the operator panel. Bidirectional speed option (the complete coil has to be wound in one direction). Spindle brake control. Brake wire. Operator guard.
