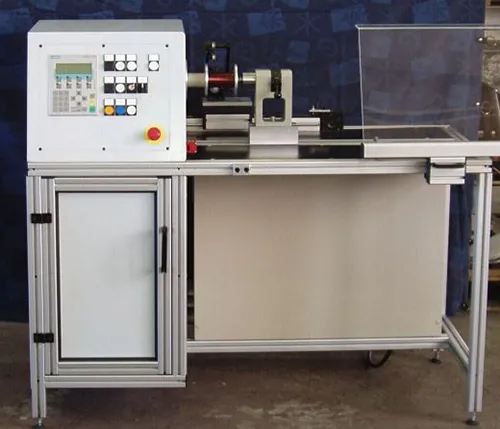

NS10 winder

It is designed for winding coils of transformers or individual motor coils. Spindle drive with asynchronous electric motor with speed control via frequency converter. Wire laying is done by a servomotor thread next to the thread. Winding is triggered by the controller. The winding process takes place automatically. The winding parameters (speed, number of threads, wire diameter, coil dimensions) are set on the operator panel. Diagnostics of machine operation on the operator panel.

Two-way speed possible. Possibility to manually operate the spindle brake. Brake wire. Operator guard. Controlled PLC Simatic.
