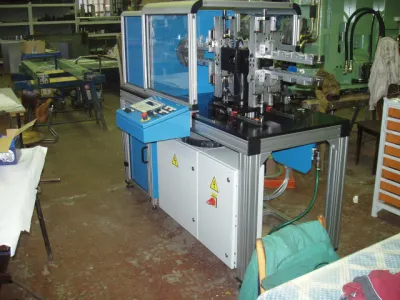

Double-spindle MLSF winder

Double-spindle MLSF winder

The winder is designed for winding coils on exchangeable templates. Opening the templates and placing the wires into individual coils is done by servomotors. The spindle is propelled by a powerful servomotor allowing winding at a high torque even at low rpm. The wire is wound in the individual coils by a thread next to the thread. When winding, the wire is braked by a variable torque braking system.

The winder has two winding heads mounted on the pivot pole. This allows simultaneous winding of the coils on one side and removal of the coils by the user from the templates on the other side. The operator is protected from rotating templates by the sliding cover.

Parameters for winding (opening templates, number of spool threads) can be set on the operator panel located on the sliding cover.

The machine is controlled by the Telemecanique Premium programmable machine. The machine's function is monitored on the operator panel display.
