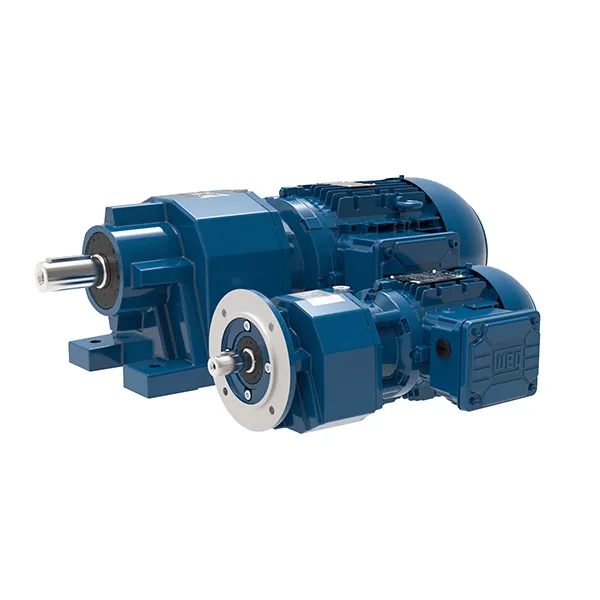

WG20 - Helical Geared Motors

WG20 - Helical Geared Motors

WG20 - Helical Geared Motors

The helical gear units come in five housing sizes for nominal torques from 50 to 600 Nm and are available in both foot and flange designs. While the two smaller gear units (C00 and C01) are able to perform to their full potential with just two stages, the larger C03 to C06 are available in both two and three-stage versions, for those applications in higher torque ranges.

ABOUT THIS PRODUCT

WG20 - Helical Geared Motors

The helical gear units come in twelve housing sizes for nominal torques from 440 to 159,300 lb-in and are available in both foot and flange designs. While the two smaller gear units (C00 and C01) are able to perform to their full potential with just two stages, the larger C03 to C16 are available in both two and three-stage versions, for those applications in higher torque ranges.

  • Nominal torque: 440 – 159,300 lb-in
  • Rated power: 0.16 - 100 HP
  • Ratio: 2.44 - 375.71

Typical areas of application

Machines for timber processing companies, presses, conveyor belts, rotary tables, pumps, packaging machines, bakery equipment, lifts, looms, screw conveyors and screw compressors.

Standard mounting dimensions

Taking the most significant standard mounting dimensions available into account, the design allows for easy integration of WG20 geared motors into almost any existing systems.
