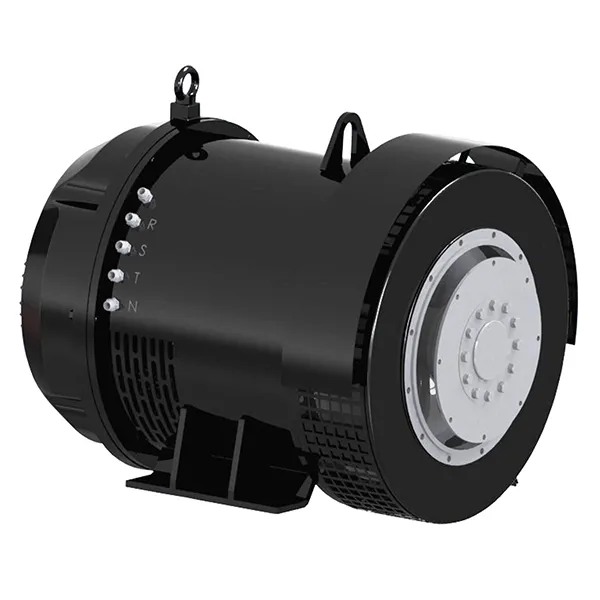

Synchronous Alternators - G Aircraft 400 Hz

Synchronous Alternators - G Aircraft 400 Hz

WEG 400 Hz alternators are especially designed for aviation Ground Power Units (GPU) that are driven by diesel engines to power aircraft while grounded for boarding and maintenance. WEG’s high efficiency and robust design is optimized to allow for greater savings in fuel and maintenance costs while ensuring long term reliability.

ABOUT THIS PRODUCT

Technical Features

• Output: 30 to 180 kVA (others upon request)
• Frequency: 400 Hz
• Number of poles: 24 and 26 (others upon request)
• Voltage: 208/120 Vca or 200/115 Vca (4 flying leads connection and 1 lead for acessory)
• Insulation class: H (180 °C)
• Power factor: 0.8
• Excitation: Brushless
• Protection degree: IP23
• Single bearing with flexible coupling discs
• Double bearing
