Techpap SAS

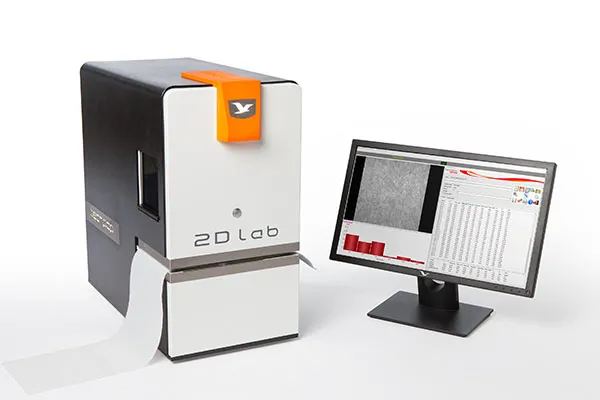

2D Lab-Lab Formation Measurement

ADVANTAGES-HIGHLIGHTS

• Turn Key installation

• One click measurement, Results within seconds, high repeatability

• Durable light source : no warming up, recalibration or replacement of lights

• Basic weight range from 101000g

• Built in automatic feeder

• Large measurement size : 12x12 cm

• Data can be connected to DCS same system online

APPLICATIONS

• Tissue

• Printing / writing

• Board

• Construction material

• Pulp sheets

GENERAL FEATURES

• Look through formation similar to visual comparison

• Automatic adjustable light source

• FFT Fast - Fourrier Transform image analysis.

DISPLAYED RESULTS

• Lookthrough formation index 12x12 cm (4,75"x 4,75")

• Floc size distribution in 6 classes (1, 2, 3, 6, 10 and 16 mm)

• Floc anisotropy (average Lx, Ly and angle)

• Observation on PM jet/wire ratio

• Periodic marks (wire/felt marks) including intensity, distance, angle

• Statistical results.
