Strahman Valves, Inc

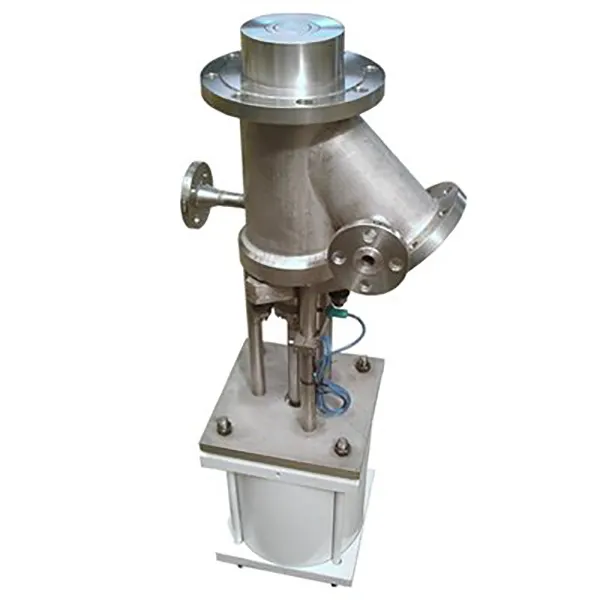

Metal & Dual Seated (VP series)

Metal & Dual Seated (VP series)

Description

The Strahman VP Series are Metal and Dual Seated Piston Valves with high sealing performance. The M Seal and Dual Seal designs are dead space free reactor outlet valves. When opening, the piston retracts completely into the valve body, which provides an unrestricted flow. In combination with our maximized port sizes, this design offers maximum flow capacity.

The M Seal is specifically designed for high pressure and temperature combinations such as polymer processes. For mid-range pressure and temperature applications with slurry or high viscosity products, the Dual Seal offers the unique double sealing guarantee.

This valve series is available with a wide choice of options such as metallurgy and actuators. Other available features are full jacketing and dead space free connections to vessels.

Typical applications include PET, PTA, molten and slurry type processes.
