Disc Type (DD)

Disc Type (DD)

Description

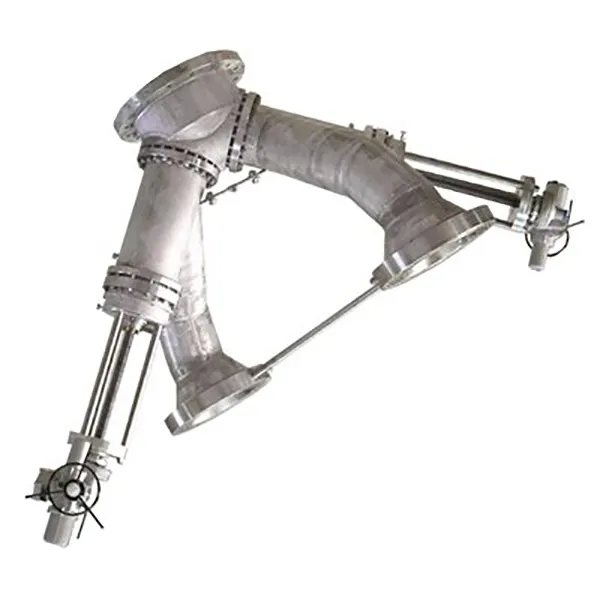

The Strahman Disc Type Diverter Valve is specially designed to divert one main flow in two separate flows. The valves are designed to minimize retention areas. They are often used as reactor isolation valves in, for example, polyester processes. Equipped with the vacuum package, they are often used for full vacuum applications in combination with high temperatures. The valves are bi-directional.

When opening, the discs retract completely into the valve body. This, along with our maximized port sizes, helps our designs provide unrestricted full flow and maximum flow capacity.

The valve is available with a wide variety of options such as metallurgy, seat arrangements and actuators. Other available features are full jacketing, vacuum package and a wide choice of different body arrangements.
