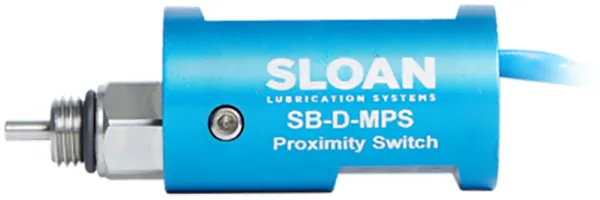

Magnetic Proximity Switch

Magnetic Proximity Switch

The magnetic proximity switch is a crucial component of your fail-safe monitoring system. The MPS detects each divider block cycle and sends a signal to your Wizard Monitor or PLC control system. Our MPS has a patented spring- free operation for peerless, problem free reliability.

Features & Benefits

  • Anodized aluminum body and stainless steel wetted parts
  • Spring-free design eliminates wear parts
  • Fully enclosed design eliminates leak paths
  • Removable magnetically captive pin for easy cleaning and operation verification
  • Fully enclosed reed switch and PVC jacketed cable
  • Easily separable magnet housing
  • Normally closed switch design for simplified troubleshooting and circuit verification
  • Precision-manufactured reed switch designed for millions of closures at low voltage
  • Follows piston travel and reports each block cycle to the Wizard Monitor
  • US Patent 8575921


Switching voltage (DC or peak AC) 200V

Switching current (DC or peak AC) 0.5A

Carry current (DC or peak AC) 1.25A

Static resistance (@ 0.5, 10mA) 200

Insulation resistance (@ 100V) 1010

Sensor resistance (@ 40% overdrive) 480 mOhm
