Gauge Assembly

Proper divider block function is critical to lubrication system reliability. Protect your divider blocks from contamination and monitor their health with our divider block accessories to guarantee fail-safe function and quickly troubleshoot any problems that arise during operation.

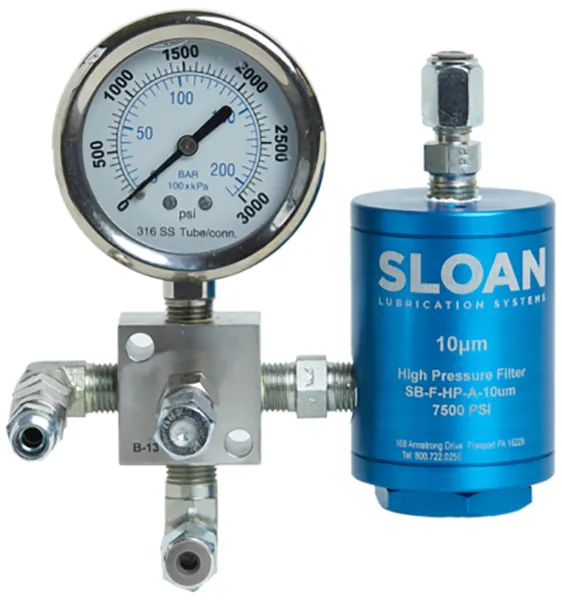

Our gauge assembly provides multiple vital functions in a divider block system. It is the inlet for each lubrication zone and provides filtration, high pressure relief, visual pressure monitoring, and a purge point for maintenance and testing. The gauge assembly is available with a rupture relief valve that uses rupture disks, or a high pressure relief valve that resets itself once the pressure drops below its set pressure.

Features & Benefits

• 10, 25, 40, 90 and 150 micron filter elements available
• Available with a rupture disk relief assembly or a high-pressure relief valve to any set pressure required
• Sintered bronze element protects divider block’s extremely tight tolerance pistons
• Filter element allows easy replacement without disturbing tubing
• Vertical installation of element parts protect gaskets upon installation
• Purge point with a terminal check valve used for high-volume purging of the divider block and lubrication lines
