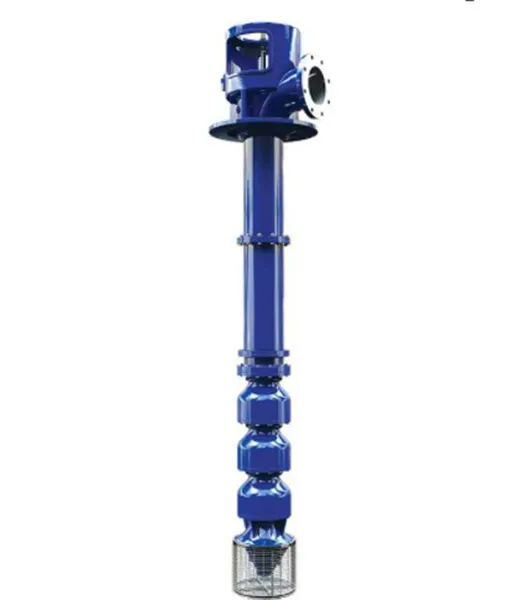

Vertical Turbine Pumps

CHARACTERISTICS

• Multi-stage vertical centrifugal pumps with diffuser type bowl
• Semi-Open / Enclosed impellers
• Double suction first stage impeller available for ultra low NPSHR applications
• Counter clockwise rotation viewed from coupling end
• Basket or Conical strainer according to application requirements
• Fabrications according to API 610 latest edition available upon request

DESIGN FEATURES

• API 610 latest edition construction available (VS1 & VS6 types)
• Product or Oil lubricated
• Oversized Bowl Shaft Sizing for longer life
• Epoxy coated bowls
• Collet Mounted Impellers

Also available as Submersible VTP Pump for applications such as high temperature wells, wells with limited diameter, agricultural irrigation, deep well dewatering, large construction sites and others.

STANDARD CONSTRUCTION MATERIALS

Bowls:

• Cast Iron Bowls
• Aluminum Bronze Impellers
• 416 SS Shafting
• Integrity cast wear surfaces with optional wear rings in Bronze or SS

Columns:

• Carbon Steel Pipe – Threaded or Flanged
• AISI – 1045 Carbon Steel or 416 SS Line Shafting

Discharge Head:

• Cast Iron with 125# ANSI FF Flanges
• Fabricated Steel with 150# nor 300# ANSI Flanges (optional)
• Custom fabricated discharge head to meet your criteria is available

Bearing Material:

• Bronze (as standard)
