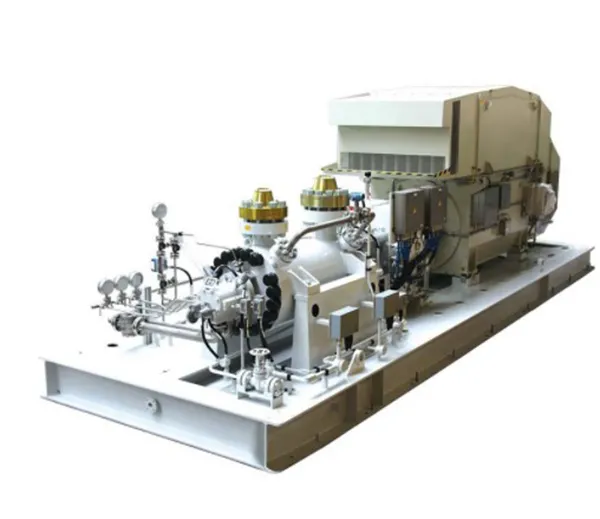

A Line Barrel Pumps

The A-Line pump range includes the A, AB, ADC and ADSL pump models, making it available either with in-line or back-to-back impeller arrangements. For ease of assembly and high overhaul times the cartridge element can be supplied as a full pull-out design.

The pumps meet the stringent specifications of API 610 latest edition (BB5 configuration) and reflect the many years of our experience in the design, manufacture, quality assurance and operation of process and decoking pumps under heavy duty conditions.

FEATURES

• Heavy-duty pump casing
• High rotor stability
• Ease of maintenance
• Pump monitoring
• Precision cast impellers
• Bearing housing
• Advanced Mechanical Sealing (to API 682)
• Hydraulic balancing device
• Balance line

CONSTRUCTION MATERIALS

• Material combinations per API 610 standard (other materials on request)

DESIGN FEATURES

Heavy-duty process design according to API 610 latest edition (BB5 type)

• Horizontal multi-stage arrangement
• Double-casing
• Radially split
• Barrel type
• Between bearings
• Centerline mounted
• Axial thrust compensation

A-Line pumps are generally in compliance with ATEX and the CE Machinery Directive and are designed for heavy-duty applications.
