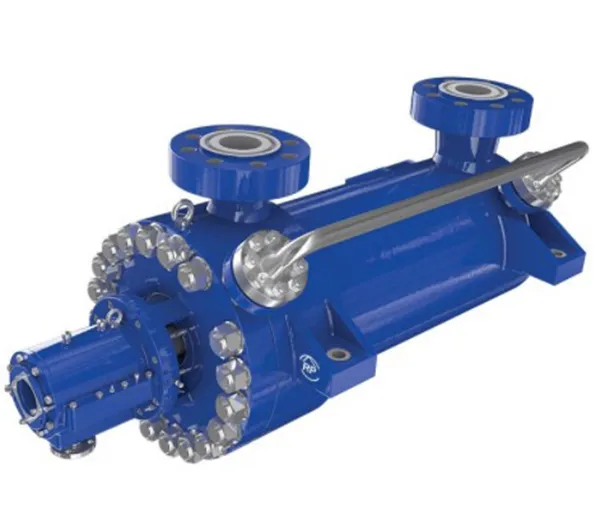

Decoking Jet Water Pump

See the A-Line pump range for more information on Ruhrpumpen's heavy-duty barrel pumps.

CHARACTERISTICS AND DESIGN FEATURES

Heavy-duty barrel pump design according to API 610 latest edition (BB5 type)

• Horizontal multi-stage pump with in-line impeller arrangement
• Single suction impellers
• Double casing
• Radially split
• Centerline mounted centrifugal pump with axial thrust compensation by balancing drum
• Top-top suction and discharge nozzles

CONSTRUCTION MATERIALS

• Material combinations per API 610 standard (C6 modified for decoking)
• NACE version is available.

BENEFITS

• Available in two casing versions: forged and cast
• Two inner element versions: standard with rigid casing and full pull-out
• Full closed stator vanes integrated into the stage casing
• Shaft sleeves integrated into the large impeller hub
• rigid rotor design or large shaft wet running class
