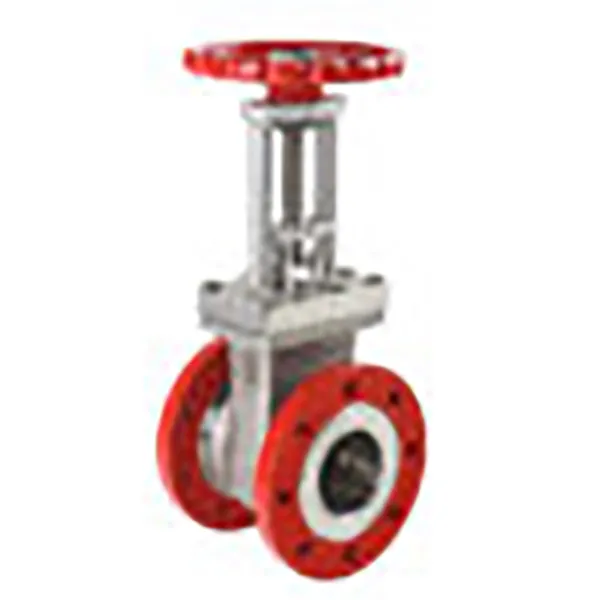

V501 Gate Valve

The Gachot® V501 Gate Valve offers maximum reliability for difficult processes and applications.

General application: Viscous fluids (resin, latex, polymers, liquid mud), Particulate fluid, Dangerous fluid (liquid sulfur, phosgene gas), High speed steam, Cryogenics, High temperature, Vaccuum (tested at 1 torr)

Technical dataValve size (DN) : 8 – 150Working pressure (bar) : 105 maxTempératures (°C): -50 /+ 400Full boreLeakage Rate : EN12266-1 – Rate A (no leakage)

Flange connectionsFlange / BW / SW / Tapped

AdvantagesFace to face : ISO5752 S01High flow rate coefficient KvAnti blowout system in standardBidirectionnalDirect visual indicator
