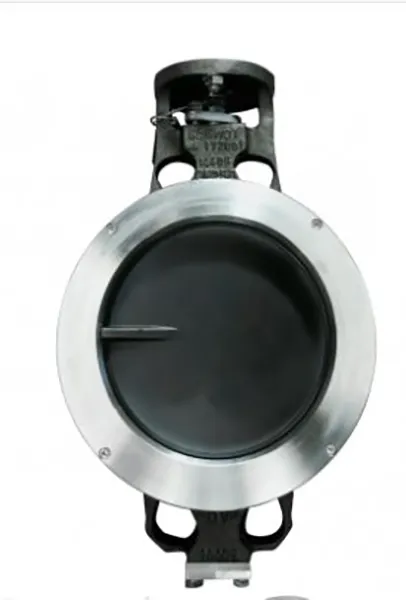

Discovanne Gachot® High Performance Butterfly Valve

Discovanne Gachot® High Performance Butterfly Valve provides effective bidirectional sealing over a wide temperature range.

General applications:Chemical and petrochemical industryGeneral industryPaper industryShipbuildingFood industryEnergy production network (power plants, general industries)

Technical data:Valve size (DN) : 50 – 300Working pressure (bar) : 50 max (acc.DN)Températures (°C): -196 / 550Double offsetLeakage Rate : EN12266-1 – Rate A (no leakage) (Siège PTFE)

Flange type:WaferPN 10/16/20/25/40/50ANSI 150/300

Certificates and Approvals:Fire Safe : API 607-ISO 10497Electrical continuityMarine : Qualified by Man Diesel

Advantages:Face to face : ISO5752 S16 (option : S20)High flow rate coefficient KvLow torque
