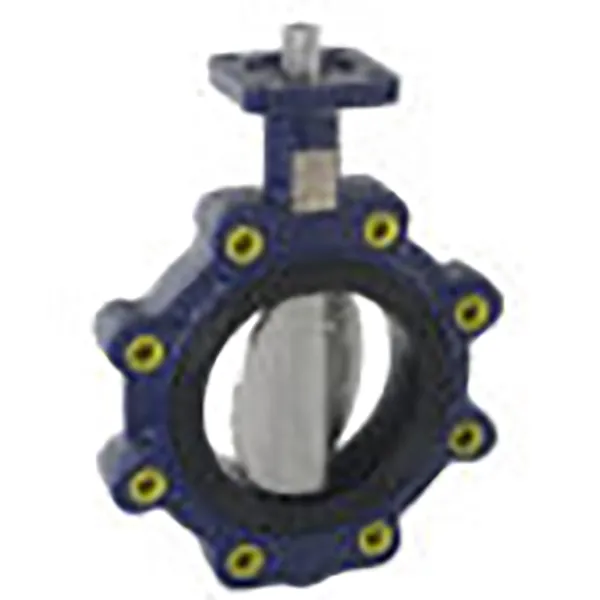

JMC Resilient Seated Butterfly Valve
Resilient Seated Butterfly ValveThe JMC range features a proven disc, shaft and seat arrangement designed for use in high pressure and high velocity applications.
General applicationsWater distribution and treatment networks, Food industry, Paper industry, Chemical and petrochemical industry, Sea water networks, General industry, Vaccuum (tested at 1 torr), etc.
Technical dataValve size (DN) : 40 – 3000Working pressure (bar) : 25 max (acc.DN)Températures (°C): -29 / 170Bidirectional designLeakage Rate : EN12266-1 – Rate A (no leakage)
Flange typeWafer / Lug / Double FlangePN 10/16/20/25/40/50ANSI 150/300Others : on request
Certifications and approvalsMarine : Bureau Veritas, DNVOil : TotalFire protection : UL, VDSPotable water : ACS, WRAS, PSBFood : FDA, CE1935Electrical continuity
Advantages:Face to face ISO 5752 – S20Low weightHigh flow rate coefficient KvHigh resistance to external stressDryshaft designLarge range of seat and dics materialsSeat Mechanical anchorage in the body.Elastomeric seat of Very high Quality (Origin : France)
