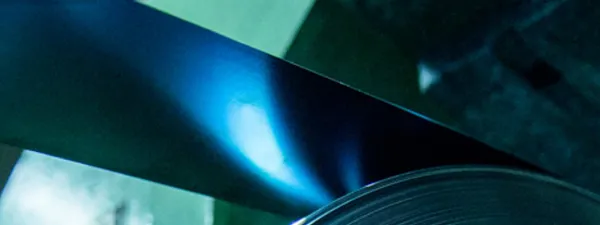

Coating Blades

Paul Wegner Coating Blades – the result of continuous technical development!

Since many years the customers and partners belief in the high qualities and strong controlling measures of Paul Wegner coating blades. Optimal coating and satisfied customers are our aspiration.

Please take further technical facts from our datasheet at the end of the page.

Alloy No.:
1.1274 (AISI 1095)

Description:
C 100 S

Hardness:
HRC:   52 – 55
HV:     550 – 600

Tensile strength:
1800 – 2000 N/mm²

Length:
after your specification

Standard width in mm:
20 – 200

Standard thickness in mm:
0.25 / 0.305 / 0.381 / 0.40 / 0.457 / 0.508 / 0.60 / 0.635

Surface:
blue polished
