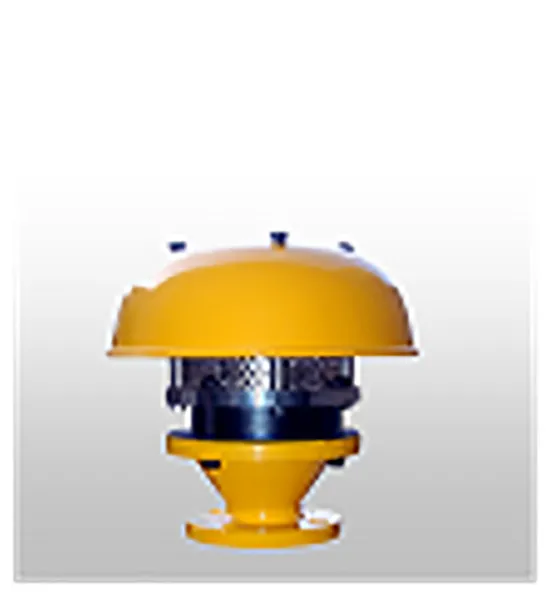

Flame Arrestor

ABOUT:Flame Arrastor for use in Chemical, Petrochemical & allied Industries. These Find Application in Chemical, Petrochemical & allied Industries requiring stroring of hazadous chemicals.They are mounted on top of strong of hazadous prevent passing of flame into the tank or in the pipeline thereby considerably reducing the fire hazard, its special crimped ribbin design prevents flame from entering into the process.

CONSTRUCTION OF MATERIALS:Cast Steel ASTM A 216 WCB, Stainless Steel CF8 (304) / CF8M (316), Alluminium Alloy LM6 & Cast Iron.

TRIM:Crimped Ribbon Bank Stainless Steel 304 / 316

TYPE:End of line / inline / DOM (HOOD) type end of the line

COMPLINES TO:API 2000

END CONNECTION:ASA 150 Class / 300 Class, Flanged / Screwed End

SIZE:25mm to 600mm

USE:In any Process of plant which uses a flammable gas or vapor that could conceivably ignite, a flame, Flame Arrestor must be installed
