OSCAR VALVES PVT. LTD.

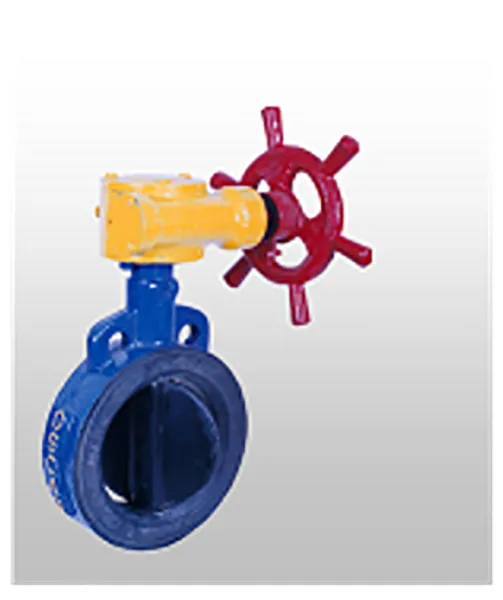

Butterfly Valves

CONSTRUCTION OF MATERIALS:Cast Iron, SG Iron, Ductile Iron, Cast Steel (ASTM A 216 WCB / LCB), Stainless Steels ASTM A 351 CF8 / CF8M

DESIGN:Center Disc / Offset Disc Design

TRIM:S.S. 410 - S.S. 304 / 316

SEAT:Molded Nitrile (Buna) Rubber / E.P.D.M. Rubber / Neoprene Rubber / Replaceable PTFE Teflone

TYPE:Wafer Type / LUG Type Plain Ends, Double Flange End

DISC:S.G. IRON, S.S. 304(CF8) S.S. 316 (CF8M) & ASTM A 216 WCB, Cast Iron Nylon Coated, Cast Iron Epoxy Coated

COMPILES TO:BS 5155 / API 609 / MSSSB6755 PART - 1 Pressure Rating: PN - 10/ 16

OPERATION:lever operated / hand wheel gear operated / pneumatic actuator operated / elecrical actuator operated
