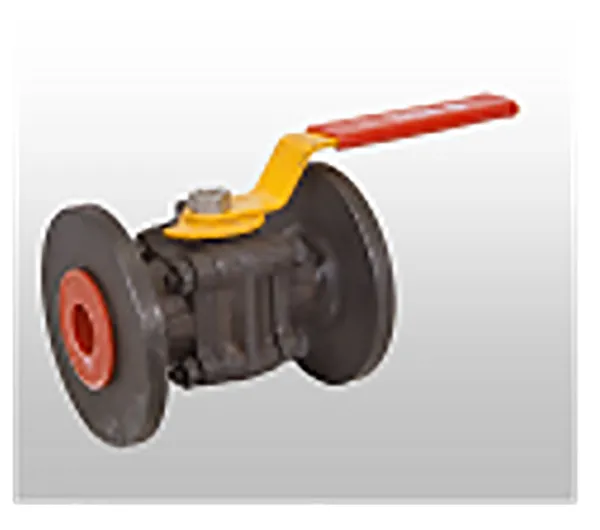

Ball Valves
CONSTRUCTION OF MATERIALS:Cast Steel (ASTM A 216 WCB / LCB), NACE MRO 1-75, Stainless Steels, (ASTM A 351 CF8,(304), CF3(304L), CF8M(316)), CF3M(316L),CF8C(321), ALLOY 20(CN/7M), Forged Carbon Steel ASTM A105/Forged Stainless Steel ASTM A182 304/304L 316/316L, Cast iron
BALL:S.S. 304 / 304L / 316 / 316L / 410 / ALLOY20. Floating Ball and Tunion Mounted Ball
TRIM:S.S. 304 / 304L / 316 / 316L / 410 / ALLOY20
SEAT:PTFE (100%) / Glass / Carbon Filled / Metal to Metal Seated
TYPE:One piece / Two Piece / Three Piece Design
PORT:Regular / Full Port
COMPILES TO:BS-5351,API-6D
TESTING STD:BS 5146 / BS6765
DESIGN:Floating Ball and Tunion Mounted Ball Design
Fire Safe Design / Anti Static Design
END CONNECTION:Screwed / Socket Weld / Butt Weed / Flanged ends
PRESSURE RATING:ASA 150 / 300 / 600 / 800 / 900 class
SIZE:6mm to 400mm
TEMP:235° C.
OPERATION:lever opereted,Hand wheel gear operated, Pneumatic Actuator opereted, Electic Actuator opereted
