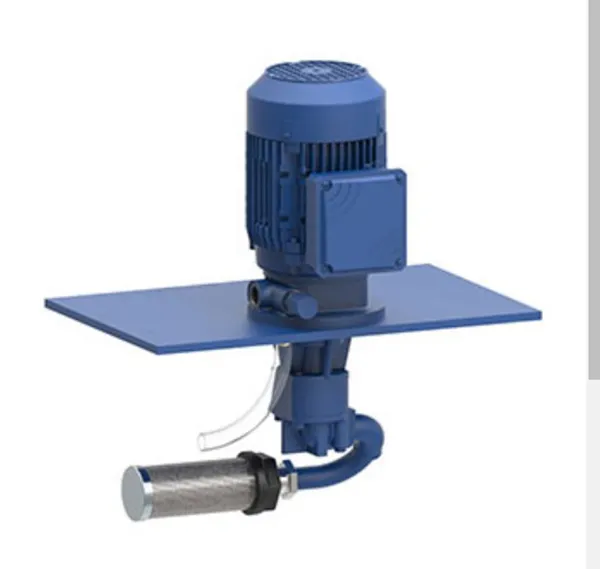

Fixed clearance external gear pump, vertically mounted. Designed to be direct driven by IEC metric electric motors. Aluminium / bronze bearings and chrome plated shafts as standard make these units particularly suited to water soluble oil, machine tool coolant applications
Specification
Capacity range
up to 70 l/min.
Speed
up to 1 800 rpm.
Pressure
up to 20 bar pressure differential.
Suction lift
up to 9 m.
Viscosity range
up to 2 000 cSt.
Seals
rotary shaft lip seal.
Bearings
aluminium / bronze.
Housings
cast iron.
Gears and shafts
carbon steel.
Common applications
Gear oil
Vegetable oil
Solvents
Fuel oil
Kerosene
Glycol
Lubricating oil
Grease
Soluble oil
Hydrocarbons
Resin
Machine tool coolant
Hydraulic oil
Crude Oil
Diesel fuel
Paraffin
Jet fuel
