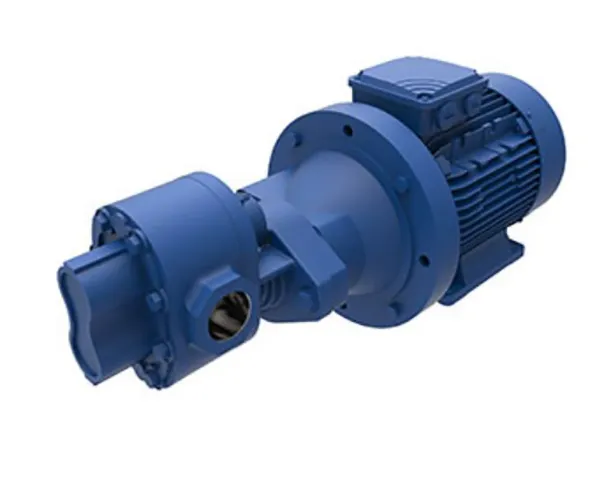

Fixed clearance external gear pump, suited for our highest flow capabilities. Designed to be readily connected to IEC metric electric motors via proprietary bell housings. Foot mounted units allow ‘long coupled’ variants and connections to other prime movers.
Specification
Capacity range
up to 290 l/min.
Speed
up to 1 200 rpm.
Pressure
up to 30 bar pressure differential.
Suction lift
up to 9 m.
Viscosity range
up to 50 000 cSt.
Seals
rotary shaft lip seal, mechanical seal, packed gland.
Bearings
needle roller, PTFE bush, bronze, plain cast iron.
Housings
cast iron.
Gears and shafts
carbon steel, chrome plated.
Common applications
Gear oil
Vegetable oil
Solvents
Fuel oil
Kerosene
Glycol
Lubricating oil
Grease
Soluble oil
Hydrocarbons
Resin
Machine tool coolant
Hydraulic oil
Crude Oil
Diesel fuel
Paraffin
Jet fuel
