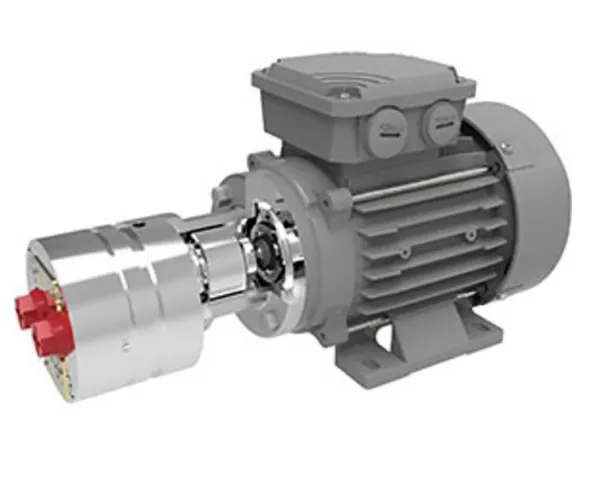

Compact, modular, fixed clearance external gear pump, ideally suited for the lower range of flow requirements. Designed to be readily connected to IEC metric electric motors via bespoke bell housings.
Specification
Capacity range
up to 5 l/min.
Speed
up to 1 800 rpm.
Pressure
up to 30 bar pressure differential.
Suction lift
up to 9 m.
Viscosity range
up to 5 000 cSt.
Seals
rotary shaft lip seal, mechanical seal, packed gland.
Bearings
needle roller, PTFE bush, bronze, plain cast iron.
Housings
cast iron, stainless steel.
Gears and shafts
carbon steel, stainless steel, engineering plastics.
Common applications
Gear oil
Vegetable oil
Solvents
Fuel oil
Kerosene
Glycol
Lubricating oil
Grease
Soluble oil
Hydrocarbons
Resin
Machine tool coolant
Hydraulic oil
Crude Oil
Diesel fuel
Paraffin
Jet fuel
