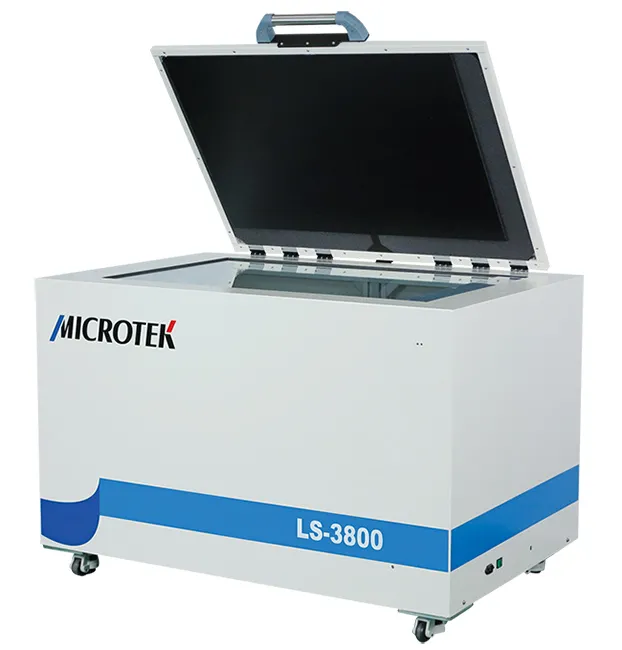

A1 large format graphic scanner LS-3800

A1 large format graphic scanner LS-3800

Microtek’s LS-3800 is a flat and large-format scanner which supports a scanning area up to 37” x 24”, larger than DIN A1 and perfect for scanning large documents, such as color posters, architectural drawings, industrial and construction blueprints. Moreover, it is also fit to scan clothes, textiles, hanging charts, bounded books, fragile materials, fine arts, and other exquisite originals. The LS-3800 has a color CCD with optical resolution of 800 dpi, ensuring superior imaging performance. The two-way switchable LED light source is perfect to scan subjects with either even or uneven surfaces. Also, it can be powered on immediately, requiring zero warm-up time. Users only need to put originals to be scanned on the glass surface and then they can easily get clear images.

Multi-Purpose A1 Multi-Purpose A1 ulti-Purpose A1+ Flatbed ScannerFlatbed Scanner Flatbed Scanner

  • Large 37” x 24” scanning area

  • Flatbed design for a wide variety of documents and objects

  • Color CCD with true 800 dpi optical resolution

  • 10 mm depth of field ensures superior scan quality

  • Switchable two-way LED light source meets scan requirements toward various subjects

  • One CCD design, no image stitching

  • Convenient casters for easy movement and stationary

  • Optional suites of software meet various demands, including ScanWizard DTG and Cubi

Specifications

  • Scanner Type Large Format Flatbed scanner

  • Image Sensor Color Lined CCD

  • Optical Resolution 800 dpi

  • Light Source LED

  • Color Depth 48-bit

  • Color Mode 48-bit color / 16-bit grayscale / 1-bit b&w

  • Scanning Area 940 mm x 610 mm(37“ × 24”)

  • Scanning Speed 30 sec @ 200 dpi, A1 color

  • File Output Format TIFF, BMP, JPEG, JPEG2000, PDF, etc.

  • Interface Hi-Speed USB (USB 2.0)

  • Dimensions (LxWxH) 1330 x 870 x 880 mm (without cover)

  • Weight 379 lbs. (172 kg)

  • Voltage AC 100V - 240V, 47 - 63 Hz, Max.1.7A(Input)

  • Environment Operating temperature: 50° - 95°F(10° - 35°C)

  • Relative humidity: 20% - 85% RH
