Microtek International Inc.

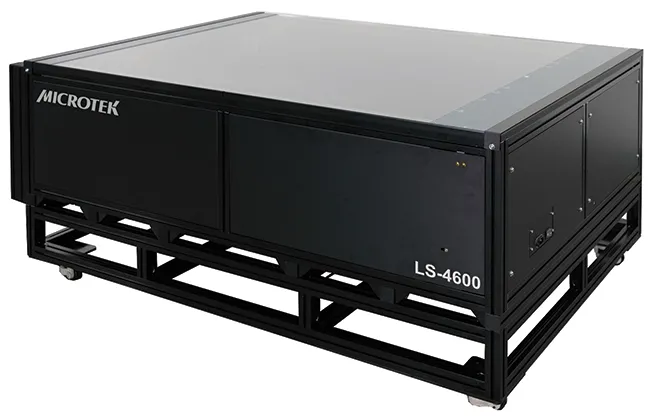

A0 Large format graphic scanner LS-4600

Microtek’s LS-4600 is a scanner which is exclusively designed for capturing large-size pictures. It is equipped with a large A0 LS-3700 scan bed, supporting scanning area up to 841 mm x 1189 mm; therefore, you can process scanning of large-size materials easily. Adopted with a high-resolution color linear CCD, generation 600 dpi resolutions and 24-bit color depth in every inch, LS-4600 delivers fantastic experiments of image scanning to you and guarantees superior color quality at the same time. There is no doubt that LS-4600 is your first and best choice for digitizing large-size materials, such as old pictures, books and historical painting albums.

A0 Large-Size Scanner

• Scanning area is up to A0 size (841 mm x 1189 mm)
• Adopted with a linear CCD sensor, ensuring superior image quality
• Optical resolution is up to 600 dpi, accomplishing requirements of
• digitizing of large-size pictures easily
• Single image sensor prevents occurring of errors for image stitching
• Two-way LED light source decreases shadows of folded materials effectively
• High-speed USB interface is easy to install
• Bundled with exclusive, multifunctional and easy-to-use ScanWizard Graph software

Specifications

• Scanner Type                    Floor flatbed scanner
• Image Sensor                   Color linear CCD
• Optical Resolution           600 dpi
• Light Source                      LED
• Color Depth                      24-bit
• Color Mode                       Color / grayscale / b&w
• Accuracy                            ± 1 %
• Scanning Area                  841 mm x 1189 mm (33.1” x 46.8”)
• Scanning Speed                60 sec @ 300 dpi, A0/Color
• Output Formats               TIFF, BMP, JPEG, JPEG 2000 and PDF
• Interface                            Hi-Speed USB (USB 2.0)
• Dimensions (LxWxH)       169 cm x 110 cm x 43 cm (Without the trolley)
• Weight About                    170 kg (Without the trolley)
• Voltage                               AC 100V~240V
• Environment                     25°C (+/- 10°C)
