Maripak Shrink Packaging Machines

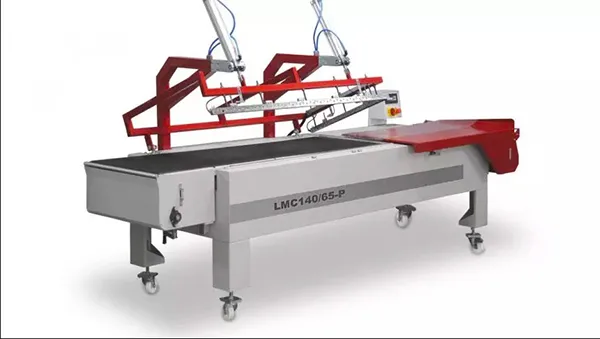

Wide Size L Sealers

LMC P Large Size Semi Automatic

WIDE SIZE MANUAL L-CUT

Features:

• A complete solution for medium-sized businesses and large-sized applications,
• The advantage of being easily connected to heat tunnels
• Industrial cutting jaw type and edge film printing blades have high seam quality,
• Automatic evacuation with discharge band and vertically adjustable movement parallel to the ground,
• Pneumatic cover and time control in automatic position
• Digital operator panel available in different languages
• Sensitive temperature control with intelligent cutting system in the cutting jaw
• Drilling holes with the help of perforators
• Sensitive and safe jaw with hand and finger protection sensors
• Semi-automatic, hand button driven jaw system,
• Optional waste wrapping mechanism,
• Height adjustable evacuation band for different package heights,
• Portable and practical film storage box with wheels, easy to carry and practical
• Cutting wire heat setting (for different speed and different film thicknesses)
• Adjustable film unwind and pack placing table
• ISO9001-2000 quality certified production
• CE mark,
• 1 year warranty excluding wear parts
• Spare parts supply guarantee under the manufacturer's warranty for 5 years.

TECHNICIAL SPECIFICATIONS

• Maximum Jaw Span:250mm
• Maximum Capacity:4 - 6 packs/min
• Maximum Product Height:150mm
• Maximum Roll Diameter:250mm
• Working Height:860mm
• Compressed Air Requirement:4 - 6 Bars
• Applied Film Types:POF: 7-37 micron PVC: 15 - 25 micron
• Colour:Light Gray + RAL7035
